ECM Kits/Multi-Organ Metastasis dECMs
Multi-Organ Metastasis dECMs
Product Number: MTSMS101
Size: 3 x 1 mL
TissueSpec® Multi-Organ Metastasis dECM Hydrogel Kit brings the tissue-specific metastatic microenvironments derived from bone, liver, and lung to your 3D culture. Each kit is lot-to-lot consistent and is sufficient to prepare 1 mL each of bone, liver, and lung hydrogels at concentrations of 6 mg/mL. Research use only.
Product Number: MTSMS201
Size: 3 x 10 mL
TissueSpec® Multi-Organ Metastasis dECM Coating Kit brings the tissue-specific metastatic microenvironments derived from bones, livers, and lungs to your 3D culture. Each kit is lot-to-lot consistent and is sufficient to prepare 10 mL each of bone, liver, and lung coatings at concentrations of 0.1 mg/mL. Research use only.
Kit contents
2 x 0.3 mL TissueSpec® Bone dECM
2 x 0.3 mL TissueSpec® Liver dECM
2 x 0.3 mL TissueSpec® Lung dECM
1 x 1 mL Component A
1 x 1 mL Component B
Workflow overview
Download supporting protocols
Material properties
Origin: Bone (porcine), Liver (porcine), Lung (porcine)
Composition: Characterization by mass spectrometry
Stiffness: ## Pa
Usage
Use: 3D cell culture
Preparation temperature: 25ºC
Preparation time: 15 min
Hydrogel volume: 1 mL
Number of wells: 18 wells at 50 µL/well
Storage: 2–8ºC
Shelf life: 12 months
Validated cell types: Human primary osteoblasts, breast cancer cells (BT-549, T47-D), monocytes, chondrocytes, adipocytes, human primary hepatocytes, hepatocarcinoma cells (HepG2), human primary hepatic stellate cells, primary lung fibroblasts, human primary bronchial epithelial cells, small airway epithelial cells (SAECs), A-549 cells, primary lung adenocarcinoma cells, HUVECs, mesenchymal stem cells
Validated multi-well formats: 6, 12, 24, 48, 96, 384
Validated imaging modalities: Brightfield, phase-contrast, immunofluorescence
Applications: Disease modeling, drug testing, organ-on-chip, organoids, spheroids, stem cells
Quality
Biocompatibility: >95% viability of human primary fibroblasts
Sterility: Negative for bacteria, fungus, mycoplasma
Concentration: 6 mg/mL (recommended working concentration)
pH: Neutral
Gelation time: 30 minutes (at 37ºC)
Ordering
Lead time: 5 business days
Shipping temperature: 4ºC (wet ice, natural insulating material)
Kit contents
1 x 1 mL TissueSpec® Bone dECM
1 x 1 mL TissueSpec® Liver dECM
1 x 1 mL TissueSpec® Lung dECM
1 x 1 mL 10x Buffer
Workflow overview
Material properties
Origin: Bone (porcine), Liver (porcine), Lung (porcine)
Composition: Characterized by mass spectrometry
Stiffness: ##
Usage
Use: 2D cell culture
Preparation temperature: 25ºC
Preparation time: 15 min
Hydrogel volume: 10 mL
Number of wells: 1 x 6 well plate at 1.5 mL per well (calculator)
Storage: 2–8ºC
Shelf life: 12 months
Validated cell types: Human primary osteoblasts, breast cancer cells (BT-549, T47-D), monocytes, chondrocytes, adipocytes, human primary hepatocytes, hepatocarcinoma cells (HepG2), human primary hepatic stellate cells, primary lung fibroblasts, human primary bronchial epithelial cells, small airway epithelial cells (SAECs), A-549 cells, primary lung adenocarcinoma cells, HUVECs, mesenchymal stem cells
Validated multi-well formats: 6, 12, 24, 48, 96, 384
Validated imaging modalities: Brightfield, phase-contrast, immunofluorescence
Applications: Drug testing, disease modeling, high throughput screening
Quality
Biocompatibility: >95% viability human primary fibroblasts
Sterility: Negative for bacteria, fungus, mycoplasma
Concentration: 0.1 mg/mL (recommended working concentration)
pH: Neutral
Gelation time: N/A
Ordering
Lead time: 5 business days
Shipping temperature: 4ºC (wet ice, natural insulating material)
TissueSpec® Multi-Organ Metastasis dECM Hydrogel Kit (3 x 1 mL)
TissueSpec® Multi-Organ Metastasis dECM Kit

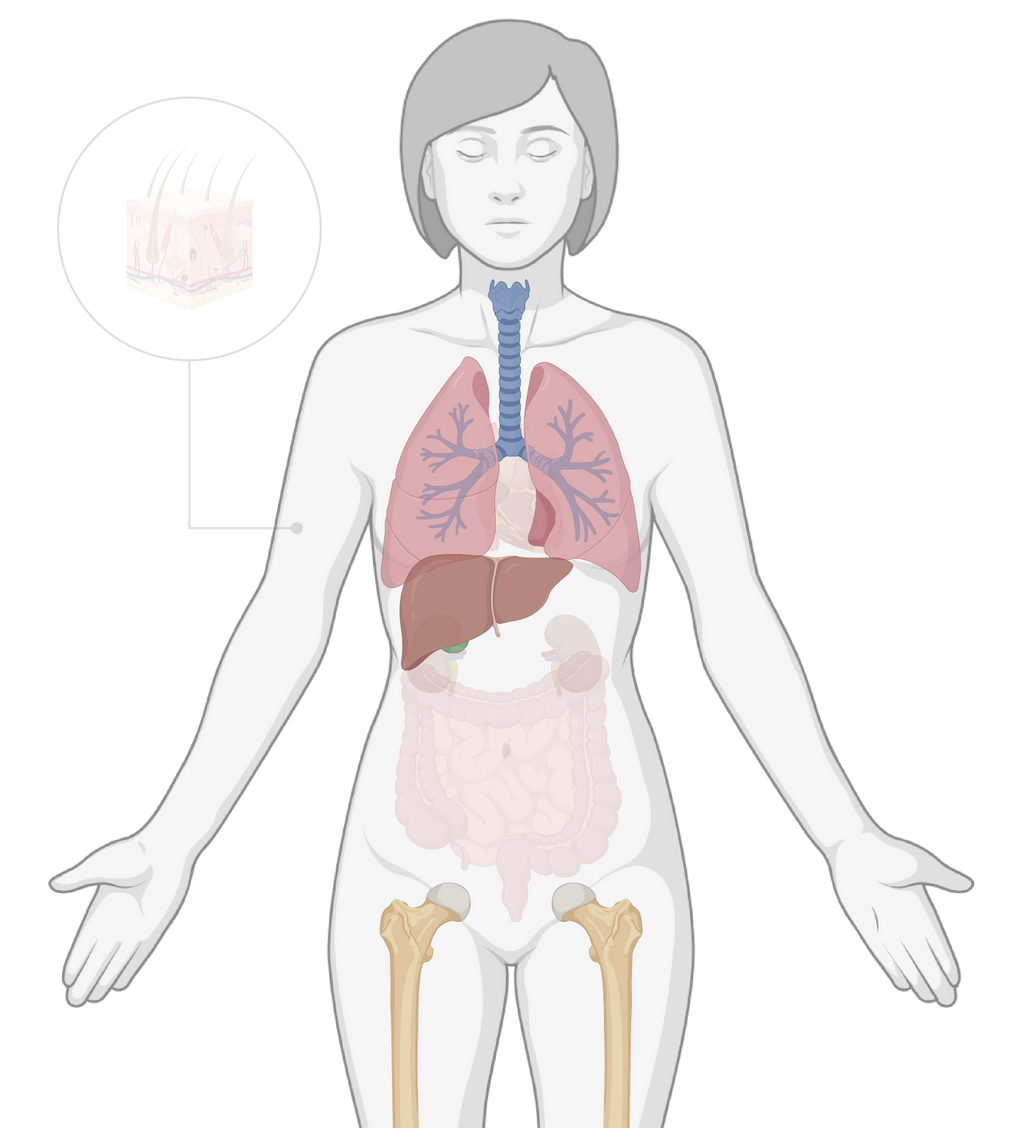

TissueSpec® Multi-Organ Metastasis dECM Kits bring the tissue-specific metastatic microenvironments derived from bone, liver, and lung to your cell culture.

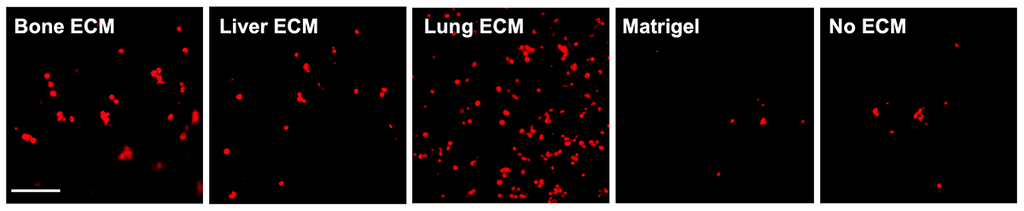

TissueSpec® Multi-Organ Metastasis dECM Hydrogel Kit: Migration (Boyden chamber) assay of BT-549 breast cancer cells.
Migration activity of BT-549 breast cancer cells to TissueSpec® Bone, Liver and Lung dECM Hydrogels, Matrigel, and no ECM (plastic). BT-549 cells were seeded on inserts (8.0 µm pore size) placed on top of 24-well plates and previously prepared with 100 µL of thin gels of TissueSpec® Bone, Liver, Lung dECMs or Matrigel (6 mg/mL each) and no ECM. After 24 hours, lower chambers were imaged to evaluate migrated cells.

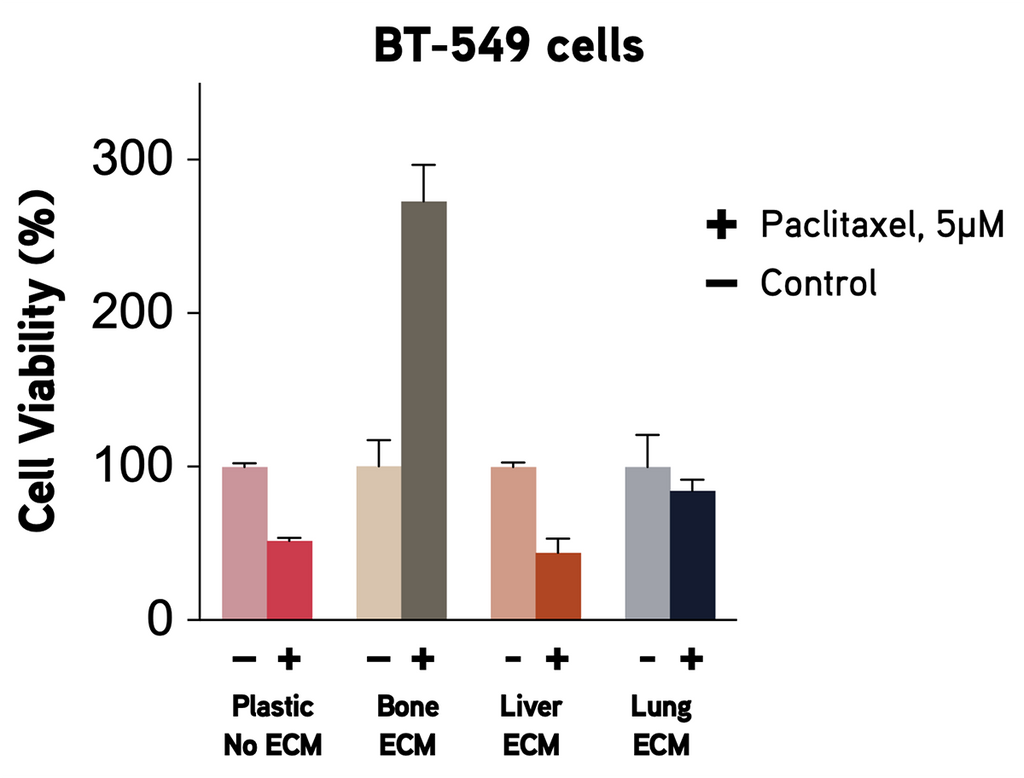

TissueSpec® Multi-Organ Metastasis dECM Hydrogel Kit: Cell viability assay of BT-549 breast cancer cells and Paclitaxel..
BT-549 cells (5x103) cultured in 96-well plates prepared with thin gels of TissueSpec® Bone, Liver, Lung dECMs (6 mg/mL each) and no ECM. After 48 hours, cells were treated with Paclitaxel, a chemotherapy medication used to treat breast cancer.

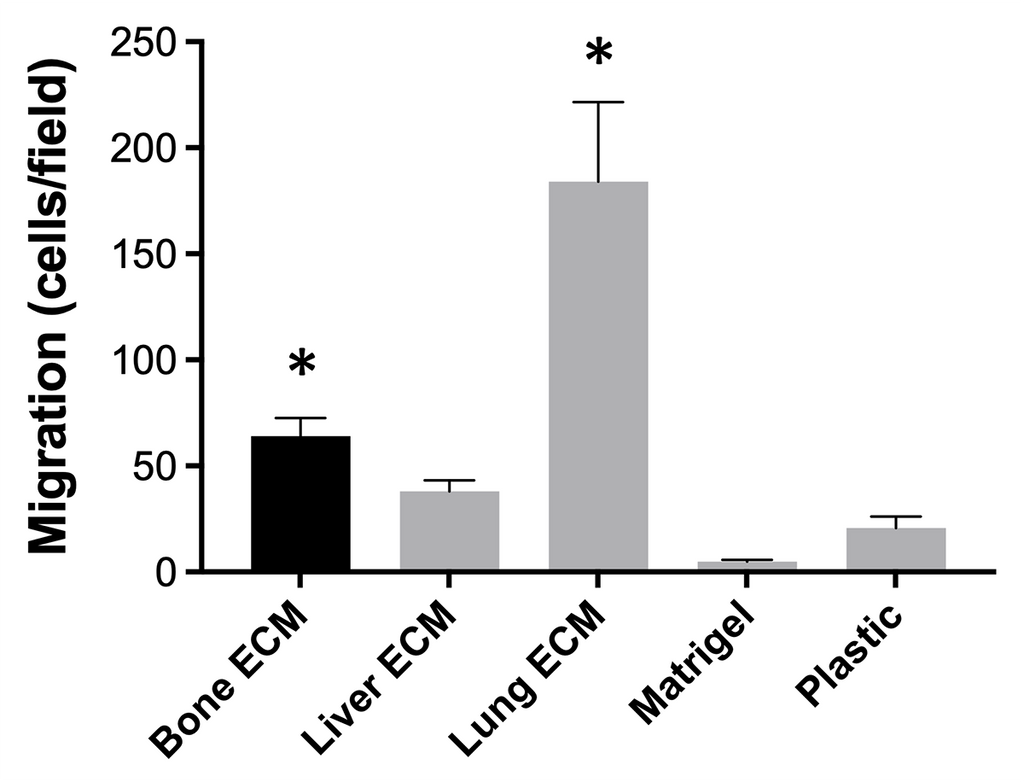

TissueSpec® Multi-Organ Metastasis dECM Hydrogel Kit: Migration assay of BT-549 breast cancer cells.
Migration activity quantification of BT-549 breast cancer cells to TissueSpec® Bone, Liver and Lung dECM Hydrogels, Matrigel, and no ECM (plastic). BT-549 cells were seeded on inserts (8.0 µm pore size) placed in 24-well plates and previously prepared with 100 µL of thin gels of TissueSpec® Bone, Liver, Lung dECMs or Matrigel (6 mg/mL each) and no ECM. After 24 hours, lower chambers were imaged to evaluate migrated cells.
TissueSpec® Multi-Organ Metastasis dECM Coating Kit (3 x 10 mL)
TissueSpec® Multi-Organ Metastasis dECM Kit
TissueSpec® Multi-Organ Metastasis dECM Kits bring the tissue-specific metastatic microenvironments derived from bone, liver, and lung to your cell culture.
TissueSpec® Multi-Organ Metastasis dECM Coating Kit: Gene expression in BT-549 breast cancer cells.
BT-549 breast cancer cells (5x104) were seeded on bone, liver, lung dECM coatings prepared at 0.2 mg/mL for 48 hours. Collagen I was used as control. Purification of total RNA was carried out using Qiagen RNeasy Mini kit. PCRs were run to identify the expression of cancer-related genes.
