ECM Kits/Heart dECM
Heart dECM
Kit contents
2 x 0.3 mL TissueSpec® Heart dECM
1 x 1 mL Component A
1 x 1 mL Component B
Workflow overview
Download supporting protocols
Material properties
Origin: Heart (porcine)
Composition: Characterization by mass spectrometry
Stiffness: ## Pa
Usage
Use: 3D cell culture
Preparation temperature: 25ºC
Preparation time: 15 min
Hydrogel volume: 1 mL
Number of wells: 18 wells at 50 µL/well
Storage: 2–8ºC
Shelf life: 12 months
Validated cell types: Human embryonic stem cells, cardiomyocytes, fibroblasts, HUVECs, mesenchymal stem cells
Validated multi-well formats: 6, 12, 24, 48, 96, 384
Validated imaging modalities: Brightfield, phase-contrast, immunofluorescence
Applications: Disease modeling, drug testing, organ-on-chip, organoids, spheroids, stem cells
Quality
Biocompatibility: >95% viability of human primary fibroblasts
Sterility: Negative for bacteria, fungus, mycoplasma
Concentration: 6 mg/mL (recommended working concentration)
pH: Neutral
Gelation time: 30 minutes (at 37ºC)
Ordering
Lead time: 5 business days
Shipping temperature: 4ºC (wet ice, natural insulating material)
Kit contents
1 x 1 mL TissueSpec® Heart dECM
1 x 1 mL 10x Buffer
Workflow overview
Material properties
Origin: Heart (porcine)
Composition: Characterized by mass spectrometry
Stiffness: ##
Usage
Use: 2D cell culture
Preparation temperature: 25ºC
Preparation time: 15 min
Hydrogel volume: 10 mL
Number of wells: 1 x 6 well plate at 1.5 mL per well (calculator)
Storage: 2–8ºC
Shelf life: 12 months
Validated cell types: Human embryonic stem cells, cardiomyocytes, fibroblasts, HUVECs, mesenchymal stem cells
Validated multi-well formats: 6, 12, 24, 48, 96, 384
Validated imaging modalities: Brightfield, phase-contrast, immunofluorescence
Applications: Drug testing, disease modeling, high throughput screening
Quality
Biocompatibility: >95% viability human primary fibroblasts
Sterility: Negative for bacteria, fungus, mycoplasma
Concentration: 0.1 mg/mL (recommended working concentration)
pH: Neutral
Gelation time: N/A
Lead time: 5 business days
Shipping temperature: 4ºC (wet ice, natural insulating material)
TissueSpec® Heart dECM Hydrogel Kit (1 mL)
TissueSpec® Heart dECM Kits
TissueSpec® Heart dECM Kits brings the heart matrix environment derived from hearts to your cell culture.
TissueSpec® dECM Hydrogel Kit
Each TissueSpec® dECM Hydrogel Kit is lot-to-lot consistent and is sufficient to prepare 1 mL of hydrogel at a concentration of 6 mg/mL. Research use only.
Kit contents include:
2 x 0.3 mL TissueSpec® dECM
1 x 1 mL Component A
1 x 1 mL Component B

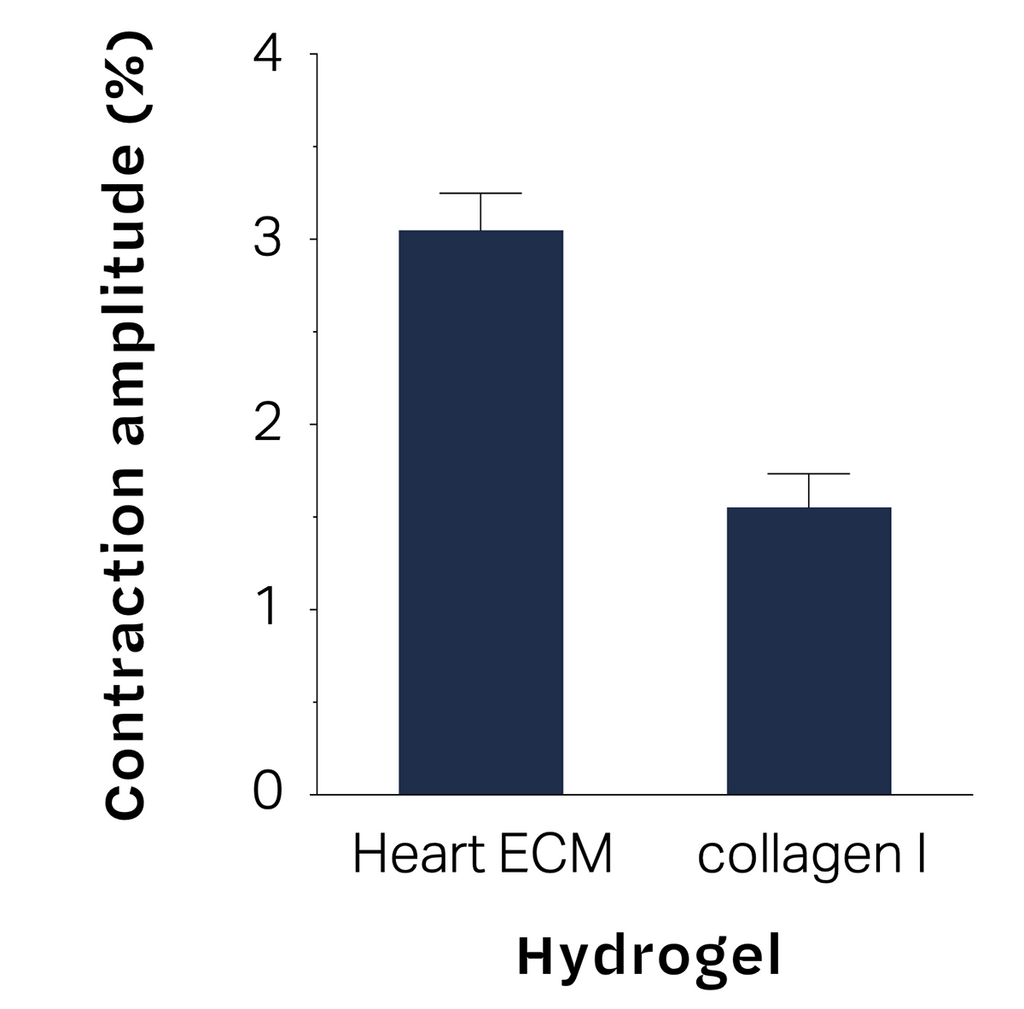

TissueSpec® Heart dECM Hydrogel Kit: Cardiomyocytes function.
Embryoid bodies were encapsulated in TissueSpec® Heart dECM Hydrogel prepared at 4 mg/mL in a ratio of 75% TissueSpec® Heart dECM Hydrogel in collagen and maintained for 12 days. Embryoid bodies encapsulated in 75% dECM hydrogel, provided the best contractility in terms of percentage of contraction amplitude among experimental groups.
TissueSpec® Heart dECM Hydrogel Kit: Morphology of embryoid bodies.
Embryoid bodies were encapsulated in TissueSpec® Heart dECM Hydrogel prepared at 4mg/mL in a ratio of 75% TissueSpec® Heart dECM Hydrogel in collagen and maintained for 12 days. Morphology of embryoid bodies in heart hydrogels appeared heterogenous in size.
TissueSpec® Heart dECM Hydrogel Kit: Immunostaining human embryonic stem cell-derived cardiomyocytes.
Human embryonic stem cell-derived cardiomyocytes were seeded in TissueSpec® Heart dECM Hydrogel prepared at 6mg/mL. Differentiation was studied using troponin I (green) and connexin 43 (red).
TissueSpec® Heart dECM Hydrogel Kit: Cardiomyocytes function analysis by aggregate area.
Embryoid bodies were encapsulated in TissueSpec® Heart dECM Hydrogel prepared at 4mg/mL in a ratio of 75% TissueSpec® Heart dECM Hydrogel in collagen and maintained for 12 days. Embryoid bodies encapsulated in 75% dECM hydrogel, provided the best contractility in terms of beating area among experimental groups.
TissueSpec® Heart dECM Coating Kit (10 mL)
TissueSpec® Heart dECM Kits
TissueSpec® Heart dECM Kits brings the heart matrix environment derived from hearts to your cell culture.
TissueSpec® dECM Coating Kit
Each TissueSpec® dECM Coating Kit is lot-to-lot consistent and is sufficient to prepare 10 mL of coating at a concentration of 0.1mg/mL. Research use only.
Kit contents include:
1 x 1mL TissueSpec® Bone ECM
1 x 1mL 10x Buffer
