ECM Kits/Bone dECM
Bone dECM
Product Number: MTSBN101
Size: 1 mL
TissueSpec® Bone dECM Hydrogel Kit brings the bone matrix environment derived from bones to your 3D culture. Each kit is lot-to-lot consistent and is sufficient to prepare 1 mL of hydrogel at a concentration of 6 mg/mL. Research use only.
Product Number: MTSBN201
Size: 10 mL
TissueSpec® Bone dECM Coating Kit brings the bone matrix environment derived from bones to your 2D culture. Each kit is lot-to-lot consistent and is sufficient to prepare 10 mL of coating at a concentration of 0.1 mg/mL. Research use only.

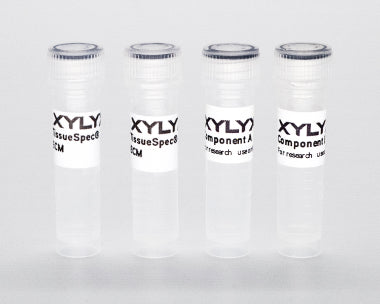

Kit contents
2 x 0.3 mL TissueSpec® Bone dECM
1 x 1 mL Component A
1 x 1 mL Component B
Workflow overview
Download supporting protocols
Material properties
Origin: Bone (porcine)
Composition: Characterized by mass spectrometry
Stiffness: 55 Pa
Usage
Use: 3D cell culture
Preparation temperature: 25ºC
Preparation time: 15 min
Hydrogel volume: 1 mL
Number of wells: 18 wells at 50 µL/well
Storage: 2–8ºC
Shelf life: 12 months
Validated cell types: Human primary osteoblasts, breast cancer cells (BT-549, T47-D), mesenchymal stem cells, monocytes, HUVECs, fibroblasts, chondrocytes, adipocytes
Validated multi-well formats: 6, 12, 24, 48, 96, 384
Validated imaging modalities: Brightfield, phase-contrast, immunofluorescence
Applications: Disease modeling, drug testing, organ-on-chip, organoids, spheroids, stem cells
Quality
Biocompatibility: >95% viability of human primary fibroblasts
Sterility: Negative for bacteria, fungus, mycoplasma
Concentration: 6 mg/mL (recommended working concentration)
pH: Neutral
Gelation time: 30 minutes (at 37ºC)
Ordering
Lead time: 5 business days
Shipping temperature: 4ºC (wet ice, natural insulating material)
Kit contents
1 x 1 mL TissueSpec® Bone dECM
1 x 1 mL 10x Buffer
Workflow overview
Material properties
Origin: Bone (porcine)
Composition: Characterized by mass spectrometry
Stiffness: N/A
Usage
Use: 2D cell culture
Preparation temperature: 25ºC
Preparation time: 15 min
Hydrogel volume: 10 mL
Number of wells: 1 x 6 well plate at 1.5 mL per well (calculator)
Storage: 2–8ºC
Shelf life: 12 months
Validated cell types: Human primary osteoblasts, breast cancer cells (BT-549, T47-D), mesenchymal stem cells, monocytes, HUVECs, fibroblasts, chondrocytes, adipocytes
Validated multi-well formats: 6, 12, 24, 48, 96, 384
Validated imaging modalities: Brightfield, phase-contrast, immunofluorescence
Applications: Drug testing, disease modeling, high throughput screening
Quality
Biocompatibility: >95% viability human primary fibroblasts
Sterility: Negative for bacteria, fungus, mycoplasma
Concentration: 0.1 mg/mL (recommended working concentration)
pH: Neutral
Gelation time: N/A
Lead time: 5 business days
Shipping temperature: 4ºC (wet ice, natural insulating material)
TissueSpec® Bone dECM Hydrogel Kit (1 mL)
TissueSpec® Bone dECM Kits
TissueSpec® Bone dECM Kits bring the bone matrix environment derived from bones to your cell culture.
TissueSpec® dECM Hydrogel Kit
Each TissueSpec® dECM Hydrogel Kit is lot-to-lot consistent and is sufficient to prepare 1 mL of hydrogel at a concentration of 6 mg/mL. Research use only.
Kit contents include:
2 x 0.3 mL TissueSpec® dECM
1 x 1 mL Component A
1 x 1 mL Component B

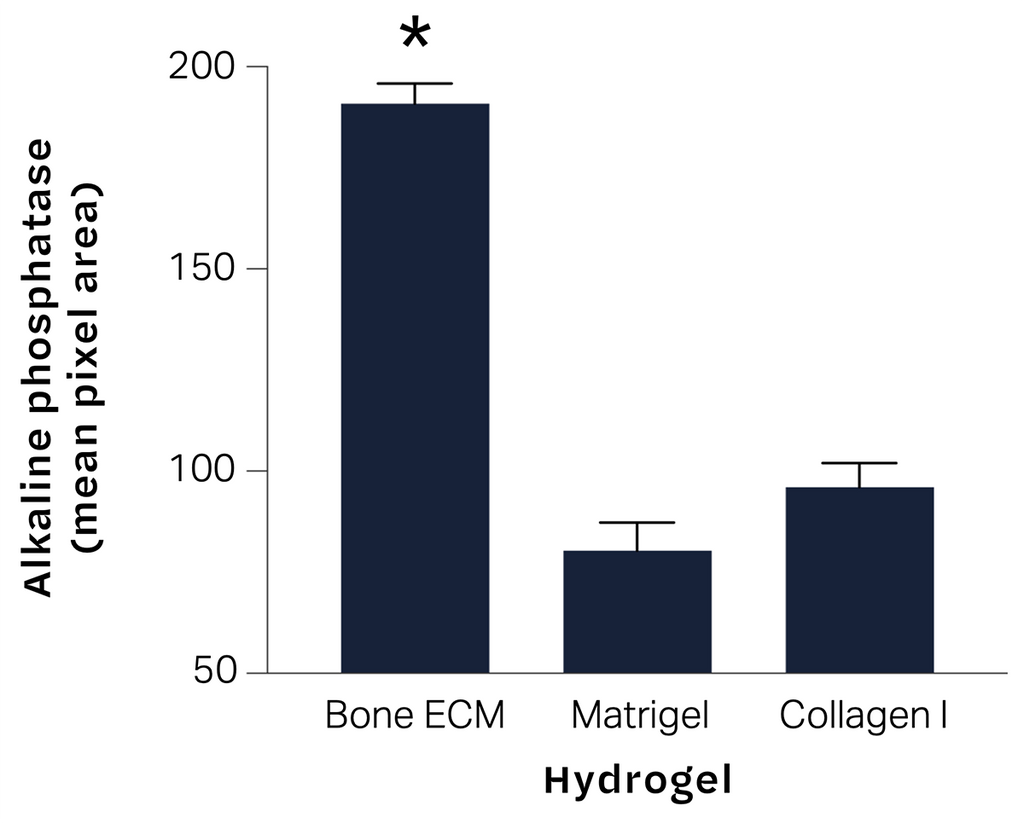

TissueSpec® Bone dECM Hydrogel Kit: Alkaline phosphatase activity of primary human osteoblasts.
Alkaline phosphatase activity of primary human osteoblasts in TissueSpec® Bone dECM Hydrogel, Matrigel, and collagen I. Primary human osteoblasts at passage 3 were embedded in Bone dECM Hydrogel (6 mg/mL), Matrigel (6 mg/mL), or collagen I (6 mg/mL) at a density of 3 x 104 cells/mL and 200 µL/well were added to a 24-well plate.
TissueSpec® Bone dECM Hydrogel Kit: Alkaline phosphatase activity of primary human osteoblasts.
Primary human osteoblasts at passage 3 were embedded in TissueSpec® Bone dECM Hydrogel (6 mg/mL), Matrigel (6 mg/mL), or collagen I (6 mg/mL) at a density of 3x104 cells/mL and 200 µL/well were added to a 24-well plate. At 7 days, morphology of live cells was imaged using brightfield microscopy at 10x objective. Scale bar: 100 µm.
TissueSpec® Bone dECM Hydrogel Kit: Cell viability assay of primary human osteoblasts.
Cell viability of primary human osteoblasts in TissueSpec® Bone dECM Hydrogel, Matrigel, and collagen I, and no ECM (plastic).

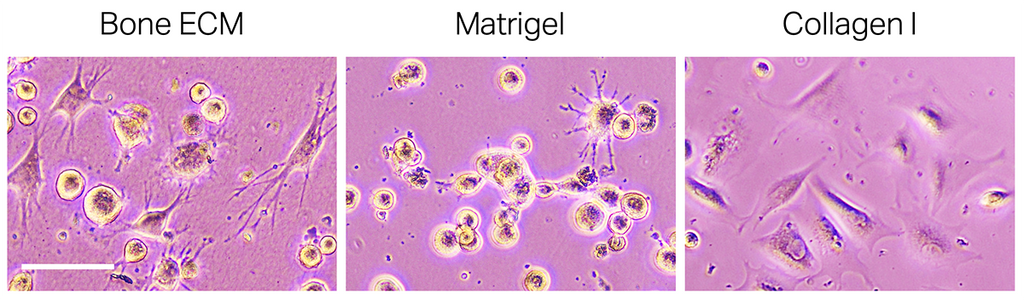

TissueSpec® Bone dECM Hydrogel Kit: Morphology of primary human osteoblasts.
Morphology of primary human osteoblasts in TissueSpec® Bone dECM Hydrogel, Matrigel, and collagen I. Primary human osteoblasts at passage 3 were embedded in Bone dECM Hydrogel (6 mg/mL), Matrigel (6 mg/mL), or collagen I (6 mg/mL) at a density of 3x104 cells/mL and 200µL/well were added to a 24-well plate. After 6 hours, morphology of live cells was imaged using brightfield microscopy at 10x objective. Scale bar: 100 µm.
TissueSpec® Bone dECM Hydrogel Kit: Migration (Boyden chamber) assay.
Migration activity of breast cancer cells BT-549 to TissueSpec® Bone dECM Hydrogel, Matrigel, and no ECM (plastic). BT-549 cells were seeded on inserts (8.0 µm pore size) placed on top of 24-well plates and previously prepared with 100 µL of thin gels of TissueSpec® Bone dECM Hydrogel (6 mg/mL) or Matrigel (6 mg/mL) and no ECM. After 24 hours, lower chambers were imaged to evaluate migrated cells.
TissueSpec® Bone dECM Coating Kit (10 mL)
TissueSpec® Bone dECM Kits
TissueSpec® Bone dECM Kits bring the bone matrix environment derived from bones to your cell culture.
TissueSpec® dECM Coating Kit
Each TissueSpec® dECM Coating Kit is lot-to-lot consistent and is sufficient to prepare 10 mL of coating at a concentration of 0.1mg/mL. Research use only.

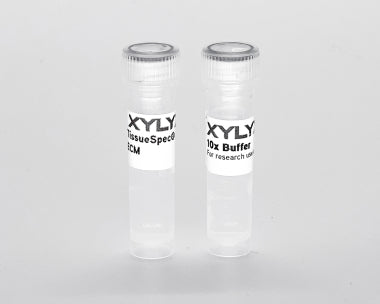

Kit contents include:
1 x 1mL TissueSpec® Bone ECM
1 x 1mL 10x Buffer
TissueSpec® Bone dECM Coating Kit: Morphology of primary human osteoblasts.
Primary human osteoblasts (5x104) were seeded on 12-well plates previously coated using the TissueSpec® Bone dECM Coating Kit at 0.2 mg/mL for 48 hours. Scale bar: 50 μm.
TissueSpec® Bone dECM Coating Kit: Morphology of lung adenocarcinoma cells.
Lung adenocarcinoma cells (5x104) were seeded on 12-well plates previously coated using TissueSpec® Bone dECM Coating Kits at 0.2 mg/mL for 24 hours.

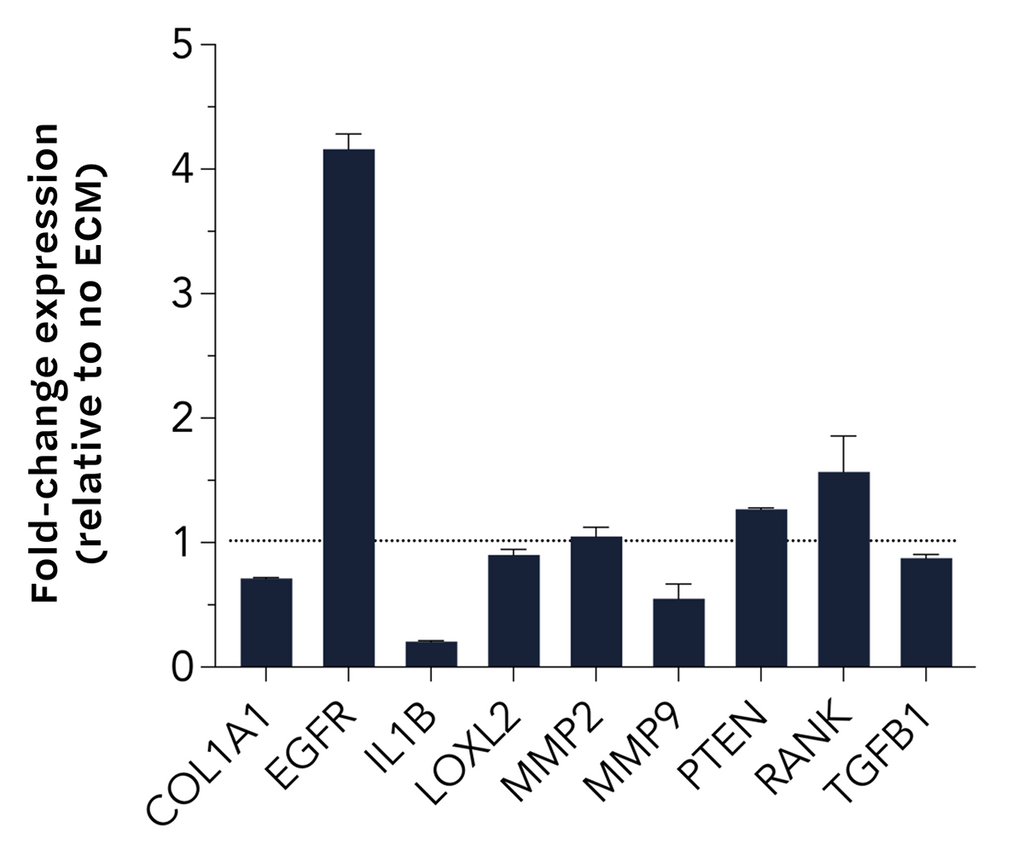

TissueSpec® Bone dECM Coating Kit: Gene expression in BT-549 breast cancer cells.
BT-549 breast cancer cells (5x104) were seeded on TissueSpec® Bone dECM Coating prepared at 0.2 mg/mL for 48 hours. Purification of total RNA was carried out using Qiagen RNeasy Mini kit. PCRs were run to identify the expression of cancer-related genes.
